High Capacity Wood Pellet Making Machine Wood Pellet Maker 90KW

I'm Online Chat Now

High Capacity Wood Pellet Making Machine Wood Pellet Maker 90KW

China High Capacity Wood Pellet Making Machine Wood Pellet Maker 90KW supplier

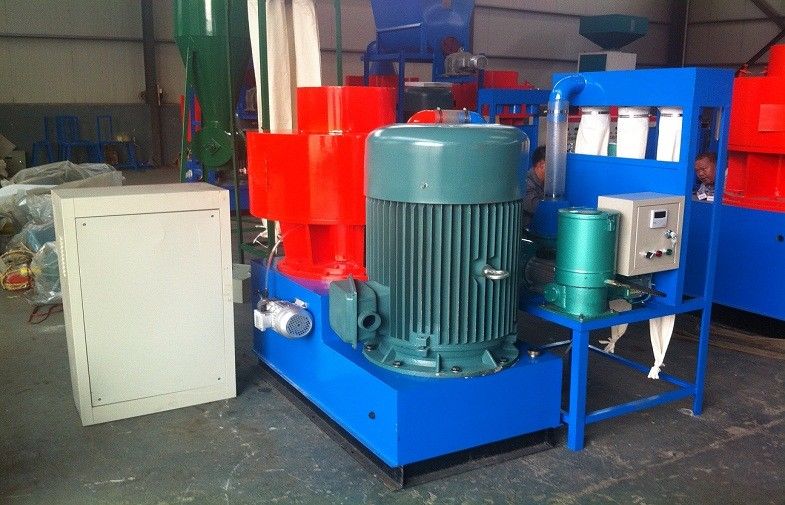

Large Image :  High Capacity Wood Pellet Making Machine Wood Pellet Maker 90KW

Product Details:

Place of Origin: CHINA
Brand Name: WHOLLY
Certification: CE, ISO
Model Number: FD550

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD20000-25000 per SET
Packaging Details: very stable iron case
Delivery Time: 15-20 days after receive down payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per momth
Detailed Product Description
Main Motor Power: 90KW Automatic Lubrication Power: 0.37KW
Dust Collector Power: 1.1KW Diameter Of Ring Die: 550mm
Thickness Of Ring Die: 670mm Capacity: 1.2-1.8 T/H

Ring die wood pellet machine with Automaic lubrication and dust collecting system:

Design of the ring die wood pellet machine: double vertical

The electrical motor is vertical, the ring-die is vertical.
They are professional machines for wood, straw, rotton stalk, rice husk, peanut shell, bamboo, empty fruit branch, palm fiber, ect.





Advantage of our ring die wood pellet machine:

1. Gearbox: driving with high-precision gears, anto-matic lubricant pump system to keep the gearbox working stability.

The warranty of the gearbox are 5 years.

2. Electrical motor: vertical design for the motor, mounting hole with output as the center, equidistant distribution around, more powerful and stability of machine working.

3. New type, with automatic lubrication system, the main shaft, and the bearings on the roller can be lubricated automaticlly.

4. Blower system: Located in one side of work bin, free control the working time, the main function is dedusting and discharge steam.

5. Working parts: ring-die and roller materials are alloy steel, after heat treatment, the hardness can be more than 52. The serivice time can be 1800~2000 hours. The roller working manner is from inside to outside press, centrifugal force and extrusion pressure together, produced more capacity. And the special design is 4-rollers working, to increase press rate. Ring die is vertical double-deck structure. It means you can use one mould with different hole size.





Parameters of wood pellet machine with Automatic lubrication and dust collecting system:

Technical parameter Model No. FD550
  Output pellet size 6-12mm
  Capacity 1.2-1.8T/H
Main frame Power of main motor 90KW
  Voltage of main motor 380V/3 phase/50hz
  Packing size 1900*950*1800 mm
  Gross weight 4500KG
Lubrication system Lubricate bearings on the main shaft  0.37KW automatic lubricant pump
  Lubricate bearings on the pressing roller 0.37KW automatic machine
  Power of the dust-collector 1.1KW/380V/3 phase/50hz
Ring die The diameter of the ring-die 550mm
  The thickness of the ring-die 670mm
  The material of the ring-die Alloy steel, heat treatment, hardness more than 52
Electrical cabinet Packing size 0.6*0.5*1.1M
  Gross weight 120KG
Gearbox Standard industrial gear box, high precision gears
