Product Details:

Place of Origin: China
Brand Name: Wholly
Certification: CE, ISO
Model Number: MKL225~MKL395

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1200~$5000 per set
Packaging Details: Standard Plywood package
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Motor: Elect-motor Power: 7.5KW~30KW
Capacity: 100~500KG/H Certificate: CE Certificate
Voltage: 380V / 3 Phase / 50hz Color: According To Clients' Requirements
Rotate Speed: 100~200RPM Output Pellets' Diameter: 4mm~8mm

Home-used flat die biomass pellet making machine

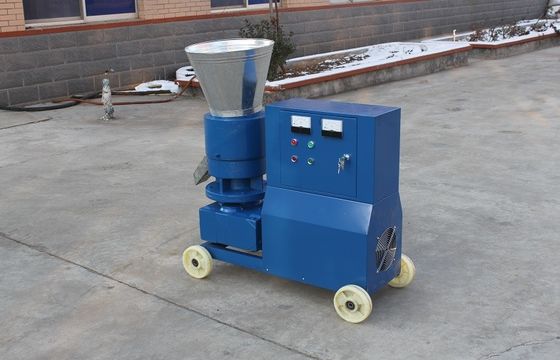

Structure of the machine

Flat Die Biomass Wood Pellet Machines / Making Wood Pellets At Home Elect Motor Driven

1. Wheel           2. Base             3. Feed hopper         4. Pellet chute

5. Upper case   6. Lower case   7. Electrical cabinet   8. Gearbox





Function of the machine

The pellet press is fixed with an engine with a power of RP-driven all kinds of different power. Via a drive shaft and the die roller wheels are caused to rotate. The starting material for the production of pellets, for example, sawdust is pressed by the wheels roller in the matrix. Due to the pressure and friction in the die, the starting material is heated to a temperature of 60-80 ° C. As a result of pressure and temperature increase, the material connects to compressed pellets and will have a high strength after cooling. Depending on the material to be pressed, additional binder needs to be added. The diameter of the pellets is determined by the hole diameter of the die. Matrices can be ordered with the following hole diameters: 2.5mm, 4mm, 6mm, 8mm.





Raw materials for the machine

Flat Die Biomass Wood Pellet Machines / Making Wood Pellets At Home Elect Motor Driven

The pellet machine can suitable for nearly all kinds of biomass materials. Like pine, white pine, mahogany, pinus sylvestris, rubber tree, bamboo shavings, rice husk, seeds shells, peanut shells, halm, pennisetum, straw, wheat straw, cor stover, cotton stalks, alfalfa grass, bagassse, palm fiber, paper, non-physical materials.





The final pellets

Output pellets can be as very good fuel, see the following specification about the pellets:

Parameters of the output pellets
calorific value >4500~4800 kcal/kg
density >1.1~1.3t/m³
moisture <=10%
combustion ratio >=98%
heat efficiency >=81%
ringelman emittance <1
discharged dust consistence <=80mg/m³
ash content <=2%

Flat Die Biomass Wood Pellet Machines / Making Wood Pellets At Home Elect Motor Driven

Flat Die Biomass Wood Pellet Machines / Making Wood Pellets At Home Elect Motor Driven



Technical parameter of the pellet machines

Model No. Power Output Packing size NW / GW Remarks
MKL225 7.5KW 120-150KG/H 100*45*98cm 230/260KG CE motor
MKL229 11KW 180-220KG/H 100*48*98cm 320/360KG CE motor
MKL295 15KW 250-280KG/H 128*60*105cm 450*480KG CE motor
MKL335 22KW 300-350KG/H 134*60*115cm 580/600KG CE motor
MKL395 30KW 400-500KG/H 152*60*115cm 650/680KG CE motor
