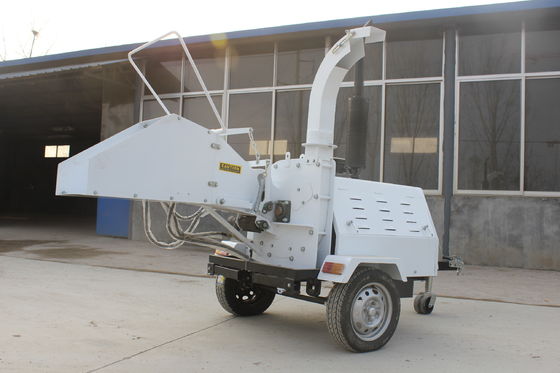

Small Dural Mechanical / Hydraulic Wood Chipper With CE Approved
1. CE approved
2. Durable Chromium CR-12 blade
3. Dual hydraulic automatic feeding or mechanical feeding
4. 7-12 CBM/H efficiency
1. 3PL wood chipper, driven by tractor PTO
2. Cutting diameter size 1cm~25cm, up to 8 inch, 7-12CBM/H cutting capacity.
3. Discharge hood can rotate in 360 degrees. Easy swivel discharge chute.
4. Feeding system: DH30 with double hydraulic motor feeding system.
5. 2 year warranty, heavy duty cast steel bearing housings. 3 blades, round disc housing, easy to change blades and belts.
The small chips made by the wood chipper can be used for animal bedding, for the forestry and soil protecting, for new energy making, for compost and forcharcoal. Some customers use their colored garden waste chips, cover the soil and made the garden beautiful; some of them use the garden waste chips in the fireplace.
|Engine||3 cylinders diesel engine with electric start|
|Max Diameter of feeding||8” diameter (200mm)|
|Feeding system||Mechanical / hydraulic|
|Rotor plate size||680mm|
|Rotor plate weight||85KG|
|Knives (blades) number||1 stationary knife (blade), 2 movable knives (blades)|
|Materials of blades||Durable Chromium CR-12|
|Dimension of discharge hopper||1780x1100x1350mm|
|Dimension of feeder hopper||200x220mm|
|Height of discharge spout||2000mm|
|Rotation Angle of Discharge Spout||360°|
1. CE approved
2. Baking paint
3. Dural hydraulic feeding
4. Durable chromium CR-12 blade
