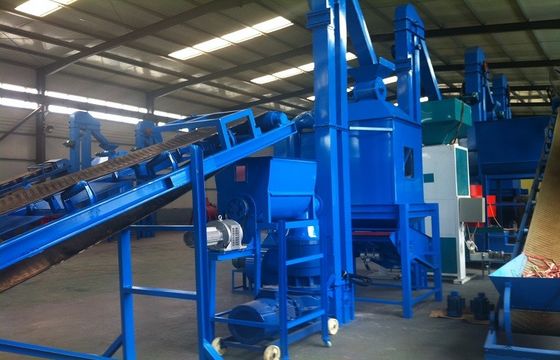

Complete Small Floor Wood Pellet Production Line For Sawdust , Rice Husk
1. Compact structure
2. Small floor
3. Low energy
4. High efficiency
1. It can change waste raw material, such as sawdust, rice husk and such material into biomass pellet ,can improve their uses, energy saving and protect the environment.
2. This item of Capacity 2 tons/H pellet production line includes wood crusher, dryer, conveyor, pellet mill, hoisting machine, cooling and separator, dust collector, packing machine and Electric cabinet. According you actual needs, you may control the production line by adjust the Electric cabinet parameter.
By using wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit branch, pulverized coal, waste paper and so on waste material, The final production of this item is Biomass energy fuel, like sawdust , wood pellet etc.
|1||New wood crusher||45||2.1*1.1*1.4||1350||With electric cabinet,output size:<5mm|
|2||Drum Dryer||14||10*1.2*2.2||5200||Reduce the moisture content of the wood sawdust which crushed by wood crusher.|
|3||Belf Conveyor||2.2||7*1*1||600||Transport crushed wood
to pellet mill,with speed adjustable motor.
|4||Pellet mill||90||1.9*0.95*1.8||4500||With feed bin, loader, feeder motor, magnetic separation|
|5||Elevating conveyor||2.2||1.0*0.4*6.0||450||Hoisting pellets into cooler|
|6||Cooling Separator||9||2.0*2.5*3.6||1500||Dry down temperature and moisture of pellets.
Separator for part pellets and few shapeless pellets.
|7||Pulsed dust collector||5.5||1.5*1.5*3.5||1100||Make few dust collecting and recycle|
|8||Elevating||2.2||1.0*0.4*6.0||450||Hoisting pellets into packing machine|
|9||Auto-matic packing machine||5||2.6*1.4*2.8||900||Including conveyor, electric cabinet, weighting instrument, packaged standard:15-50kg per bag|
|10||Electric cabinet||1.0*0.5*1.5||600||Link electric motor,control all of electric motors|
1. sufficient spare parts supply
2. excellent performance and quality
3. 1T/H capacity, 2T/H capacity, 3T/H capacity
