Small Pipe Air Flow Dryer

China Small Pipe Air Flow Dryer supplier

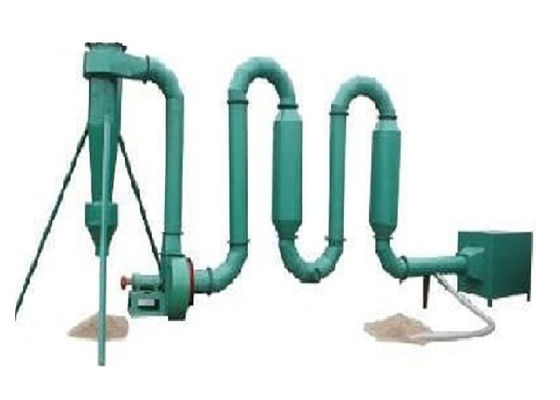

Large Image :  Small Pipe Air Flow Dryer

Product Details:

Certification: CE
Model Number: HGJ-1,HGJ-2,HGJ-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood package
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description


Reliable Small Pipe Hot Air Flow Dryer For Rice Hull , Wood Sawdust



Quick Detail:


1. 4KW/5.5KW/7.5KW CE motor

2. Capacity: 150-600KG/H

3. Input Moisture content: <40%, Output Moisture content: 8%~12%





1. Hot airflow dryer using high speed flow steam to make wet materials suspend in it, in the process of the air flow (the time is instant, nearly 10~15s), the wet materials will be dried. Then the dried material will be outputted from the cyclone, used hot airflow and steam will be exhausted from the top of cyclone.

2. High heat transfer coefficient

Due to the high speed of hot airflow, the materials dispersing fully in the chambers, so nearly all of the materials surface can be dried. It means the larger heat transfer surface.

Instant drying time airflow speed is very fast, drive the materials to output in an instant, only 10~15 seconds. So it won’t influence the quality of thermosensitive materials or low-melting-point materials.

3. Easy operation of instruction, Less area occupied, Low investment and maintenance cost.





Rice hull, wood sawdust, the small wood shavings, and grain material like crushed branch and wood chips.

Diameter size: <3mm

Length size: <5mm

Input Moisture content: <40%

Output Moisture content: 8%~12%





Model No HKG-1 HKG-2 HGJ-3
Centrifugal power (Airlock power) 4KW CE motor 5.5KW CE motor 7.5KW CE motor
Capacity 150~300kg/h 250~400kg/h 450~600kg/h
Diameter of drying chamber 500mm 600mm 600mm
Diameter of the pipe 219mm 270mm 320mm
Particle size of input diameter < 3mm diameter < 3mm diameter < 3mm
length < 5mm length < 5mm length < 5mm
Moisture content of raw materials <= 40% <= 40% <= 40%
Size of the stove 1.0*1.0*1.0m 1.2*1.2*12m 1.3*1.3*1.3m
Gross weight 1200KG 1600KG 2300KG
Packing size(m) 2.15*1.15*1.68 1.95*1.05*1.68


(packed in 2 pallets)


(packed in 4 pallets)




















Competitive Advantage:


Under temperature of 180℃ hot airflow, the airflow dryers can dry the materials with 35% moisture content to 12% at one time!

180℃ ≤ The input airflow temperature ≤ 250℃
