Technical Wood Fuel Ring Die Pellet Machine With Double Loop Ring Mold

I'm Online Chat Now

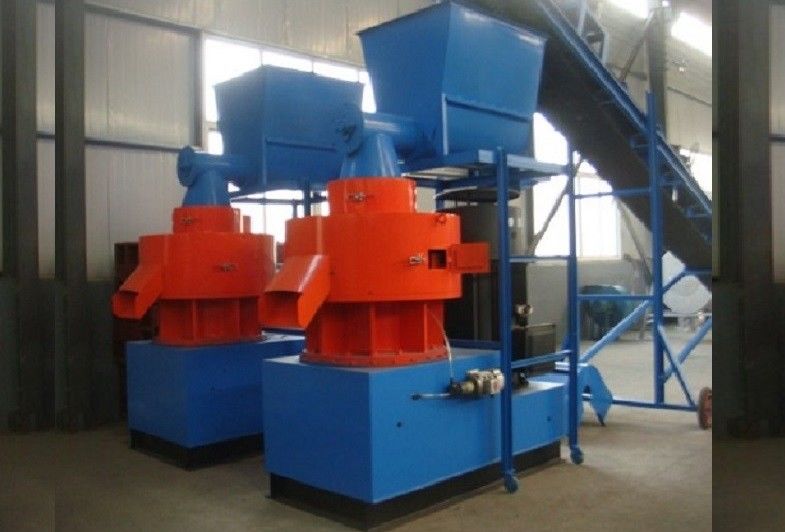

Technical Wood Fuel Ring Die Pellet Machine With Double Loop Ring Mold

China Technical Wood Fuel Ring Die Pellet Machine With Double Loop Ring Mold supplier

Large Image :  Technical Wood Fuel Ring Die Pellet Machine With Double Loop Ring Mold

Product Details:

Certification: CE SGS
Model Number: FD1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Standard Plywood package
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
High Light:

sawdust pellet machine

,

biomass pelleting machine



Technical Wood Fuel Ring Die Pellet Machine With Double Loop Ring Mold





Quick Detail:



1. Double loop ring mold

2. Automatic lubricant pump

3. Gearbox running by high precision gears





Description:



1. High output industrial used for wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit bunch, pulverized coal and waste paper etc.

2. Gearbox of pellet machines running by high precision gears, automatic lubricant pump working between gearbox and main shaft bearings to guarantee the long service life of bearings.

3. Ring die (mold) with double loop design to extend the service life of the mold.

4. Roller and mold are made by Alloy steel, after heat treatment, hardness is more than 52.

5. FD1000 is driven by 160KW electrical motor.





Applications:



Apply to mass production of wood fuel pellets. Suitable materials: nearly all kinds of wood sawdust, cotton stalk, peanut shell, coconut shell, bamboo, empty fruit bunch, pulverized coal and waste paper, ect





Specifications:



Model No. FD1000
Power 160KW/380V
Capacity (kg/h) 3000-4000
Dimension (mm) 2650*1450*2100
NW/GW (kg) 8300/8500
Materials of roller and mold Alloy steel, after heat treatment, hardness is more than 52.
Service life of roller and mold >2000 hours





Competitive Advantage:



1. Double loop ring mold design to extend the service life of the mold.

2. Automatic lubricant pump.

3. With high density, high fuel value, low moisture and low ash content output wood fuel pellets.

4. Structure is closely, easy to use, run stably
