High Light: | biomass pelleting machine,wood granulator |
---|

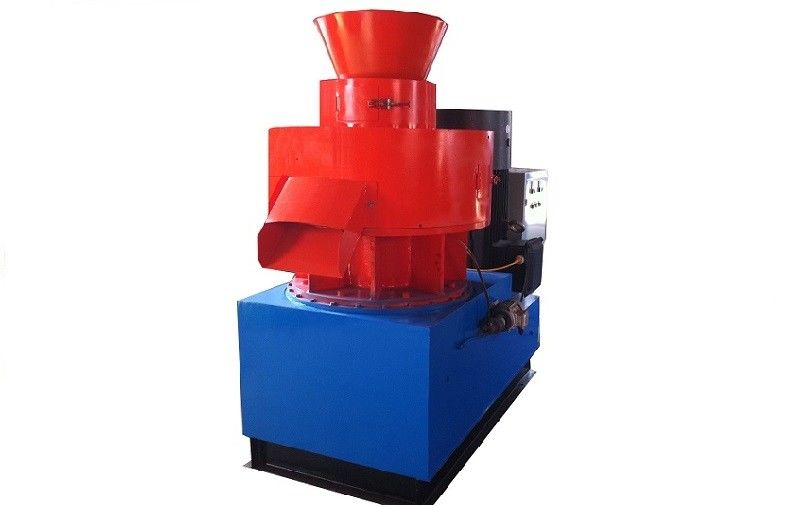

Double Vertical Sawdust Wood Pellet Press Machine Bamboo Wood Granulator
Quick Detail:
1. Double loop ring mold
2. Automatic lubricant pump
3. Gearbox running by high precision gears
Description:
1. High output industrial used for wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit bunch, pulverized coal and waste paper etc.
2. Gearbox of pellet machines running by high precision gears, automatic lubricant pump working between gearbox and main shaft bearings to guarantee the long service life of bearings.
3. Ring die (mold) with double loop design to extend the service life of the mold.
4. Roller and mold are made by Alloy steel, after heat treatment, hardness is more than 52.
5. FD450 is driven by 55KW electrical motor.
Applications:
Apply to mass production of wood fuel pellets. Suitable materials: nearly all kinds of wood sawdust, cotton stalk, peanut shell, coconut shell, bamboo, empty fruit bunch, pulverized coal and waste paper, ect
Specifications:
Model No. | FD450 |
Power | 55KW/380V |
Capacity (kg/h) | 800-1200 |
Dimension (mm) | 1400*750*1550 |
NW/GW (kg) | 2600/2800 |
Materials of roller and mold |
Alloy steel, after heat treatment, hardness is more than 52.
|
Service life of roller and mold | >2000 hours |
Competitive Advantage:
1. Double loop ring mold design to extend the service life of the mold.
2. Automatic lubricant pump.
3. With high density, high fuel value, low moisture and low ash content output wood fuel pellets.
4. Structure is closely, easy to use, run stably
