rotary drum dryer

China rotary drum dryer supplier
rotary drum dryer supplier rotary drum dryer supplier rotary drum dryer supplier rotary drum dryer supplier

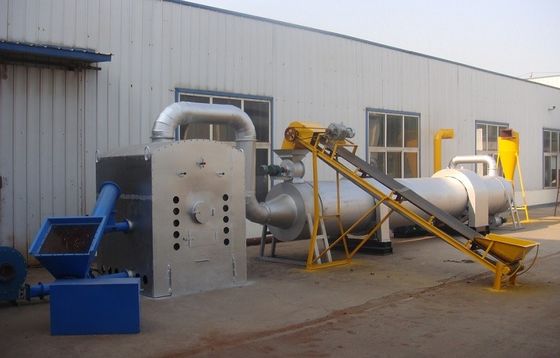

Large Image :  rotary drum dryer

Product Details:

Certification: CE
Model Number: HQ-1,HQ-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood case
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Western Union, Paypal
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
High Light:

double drum dryer


rotary drum drier


rotary drum dryer





Quick Detail:


1. Input moisture: 40%, Output moisture: 10%~15%

2. Capacity: 2000KG/Hour

3. Power: 14KW

4. The size of drum: 11.5*1.2m





1. Drum-type drier is tilted slightly and the cylindrical rotating body, the wet material enter into the upper, at the same time, the dry materials are collected on the other side of the lower part. Hot air from the feed end or discharge end access to the material and discharge from the other side of the upper part.

2. Drum-type drier’s evaporation capacity is generally 30-80kg/h, with the increase in air temperature increased, and with the nature of material changes in the water.

Equipment moves smooth, reliable, non-wearing parts, less malfunction, long service life, which have been widely used of the drying industry.





Rice hull, wood sawdust, the small wood shavings, and grain material like crushed branch and wood chips.







Equipment Power(KW)
Input air lock 0.75
Belt conveyor 1.5
Reducer motor 5.5
Blower with cyclone 5.5
Output air lock 0.75
Total 14 KW
Remark Detailed equipment including tube, material iron, diameter 219 mm Link the oven with drum, drum with blower, blower with cyclone.

















Competitive Advantage:


Quality is very stable, high dryingefficiency and better drying effect.
